Compute Moran’s I score
This example shows how to compute the Moran’s I global spatial auto-correlation statistics.
The Moran’s I global spatial auto-correlation statistics evaluates whether features (i.e. genes) shows a pattern that is clustered, dispersed or random in the tissue are under consideration.
See also
See Compute co-occurrence probability and Compute Ripley’s statistics for other scores to describe spatial patterns.
See Building spatial neighbors graph for general usage of
squidpy.gr.spatial_neighbors()
.
import squidpy as sq
adata = sq.datasets.visium_hne_adata()
adata
AnnData object with n_obs × n_vars = 2688 × 18078
obs: 'in_tissue', 'array_row', 'array_col', 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes', 'pct_counts_in_top_200_genes', 'pct_counts_in_top_500_genes', 'total_counts_mt', 'log1p_total_counts_mt', 'pct_counts_mt', 'n_counts', 'leiden', 'cluster'
var: 'gene_ids', 'feature_types', 'genome', 'mt', 'n_cells_by_counts', 'mean_counts', 'log1p_mean_counts', 'pct_dropout_by_counts', 'total_counts', 'log1p_total_counts', 'n_cells', 'highly_variable', 'highly_variable_rank', 'means', 'variances', 'variances_norm'
uns: 'cluster_colors', 'hvg', 'leiden', 'leiden_colors', 'neighbors', 'pca', 'rank_genes_groups', 'spatial', 'umap'
obsm: 'X_pca', 'X_umap', 'spatial'
varm: 'PCs'
obsp: 'connectivities', 'distances'
We can compute the Moran’s I score with squidpy.gr.spatial_autocorr
and mode = 'moran'
. We first need to compute a spatial graph with
squidpy.gr.spatial_neighbors
. We will also subset the number of genes
to evaluate.
genes = adata[:, adata.var.highly_variable].var_names.values[:100]
sq.gr.spatial_neighbors(adata)
sq.gr.spatial_autocorr(
adata,
mode="moran",
genes=genes,
n_perms=100,
n_jobs=1,
)
adata.uns["moranI"].head(10)
I | pval_norm | var_norm | pval_z_sim | pval_sim | var_sim | pval_norm_fdr_bh | pval_z_sim_fdr_bh | pval_sim_fdr_bh | |
---|---|---|---|---|---|---|---|---|---|
3110035E14Rik | 0.665132 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000247 | 0.0 | 0.0 | 0.012074 |
Resp18 | 0.649582 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000259 | 0.0 | 0.0 | 0.012074 |
1500015O10Rik | 0.605940 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000184 | 0.0 | 0.0 | 0.012074 |
Ecel1 | 0.570304 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000222 | 0.0 | 0.0 | 0.012074 |
2010300C02Rik | 0.539469 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000242 | 0.0 | 0.0 | 0.012074 |
Scg2 | 0.476060 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000174 | 0.0 | 0.0 | 0.012074 |
Ogfrl1 | 0.457945 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000198 | 0.0 | 0.0 | 0.012074 |
Itm2c | 0.451842 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000178 | 0.0 | 0.0 | 0.012074 |
Tuba4a | 0.451810 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000189 | 0.0 | 0.0 | 0.012074 |
Satb2 | 0.429162 | 0.0 | 0.000131 | 0.0 | 0.009901 | 0.000200 | 0.0 | 0.0 | 0.012074 |

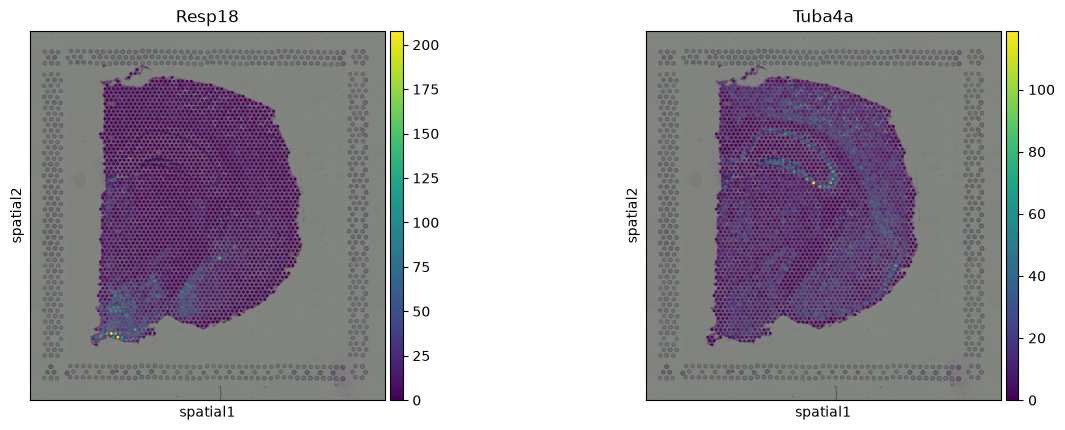

We can visualize some of those genes with squidpy.pl.spatial_scatter
.
sq.pl.spatial_scatter(adata, color=["Resp18", "Tuba4a"])
We could’ve also passed mode = 'geary'
to compute a closely related
auto-correlation statistic, Geary’s
C. See
squidpy.gr.spatial_autocorr
for more information.
