Nuclei segmentation using StarDist
In this tutorial, we show how we can use the StarDist
segmentation method in squidpy.im.segment
for nuclei segmentation.
StarDist Schmidt et al. (2018) and Weigert et al. (2020) , (code) uses star-convex polygons to localize cell for which a convolutional neural network was trained to predict pixel-wise polygons for each cell position.
To run the notebook locally, create a conda environment as conda env create -f stardist_environment.yml using this stardist_environment.yml, which installs Squidpy, TensorFlow, and StarDist.
Note: We frequently recognized a dying notebook kernel when importing other packages before StarDist with the following message “The kernel appears to have died. It will restart automatically.” We therefore recommend to import StarDist first.
# Import the StarDist 2D segmentation models.
# Import the recommended normalization technique for stardist.
from csbdeep.utils import normalize
from stardist.models import StarDist2D
import numpy as np
import matplotlib.pyplot as plt
# Import squidpy and additional packages needed for this tutorial.
import squidpy as sq
StarDist has four pre-trained models for 2D images. We will show an example for the Versatile (fluorescent nuclei) model and the Versatile (H&E nuclei). To use the StarDist model, we define a wrapper that normalizes the image with the recommended method, initializes the model and returns the segmentation mask.
StarDist2D.from_pretrained()
There are 4 registered models for 'StarDist2D':
Name Alias(es)
──── ─────────
'2D_versatile_fluo' 'Versatile (fluorescent nuclei)'
'2D_versatile_he' 'Versatile (H&E nuclei)'
'2D_paper_dsb2018' 'DSB 2018 (from StarDist 2D paper)'
'2D_demo' None
The method parameter of the sq.im.segment
method accepts any callable with the signature:
numpy.ndarray
(height, width, channels)
-> numpy.ndarray
(height, width[, channels])
. Additional model specific arguments will also be passed on.
Cell segmentation on Visium fluorescence data
# Load the image and visualize its channels.
img = sq.datasets.visium_fluo_image_crop()
crop = img.crop_corner(1000, 1000, size=1000)
crop.show(channelwise=True)
Additionally, we will have a look at the pre-trained StarDist model. The 2D_versatile_fluo model
works on one channel, as n_channel_in = 1
. We will run the segmentation on the first channel of the image in this example.
StarDist2D.from_pretrained("2D_versatile_fluo")
Found model '2D_versatile_fluo' for 'StarDist2D'.
Loading network weights from 'weights_best.h5'.
Loading thresholds from 'thresholds.json'.
Using default values: prob_thresh=0.479071, nms_thresh=0.3.
StarDist2D(2D_versatile_fluo): YXC → YXC
├─ Directory: None
└─ Config2D(axes='YXC', backbone='unet', grid=(2, 2), n_channel_in=1, n_channel_out=33, n_dim=2, n_rays=32, net_conv_after_unet=128, net_input_shape=[None, None, 1], net_mask_shape=[None, None, 1], train_background_reg=0.0001, train_batch_size=8, train_checkpoint='weights_best.h5', train_checkpoint_epoch='weights_now.h5', train_checkpoint_last='weights_last.h5', train_completion_crop=32, train_dist_loss='mae', train_epochs=800, train_foreground_only=0.9, train_learning_rate=0.0003, train_loss_weights=[1, 0.2], train_n_val_patches=None, train_patch_size=[256, 256], train_reduce_lr={'factor': 0.5, 'patience': 80, 'min_delta': 0}, train_shape_completion=False, train_steps_per_epoch=400, train_tensorboard=True, unet_activation='relu', unet_batch_norm=False, unet_dropout=0.0, unet_kernel_size=[3, 3], unet_last_activation='relu', unet_n_conv_per_depth=2, unet_n_depth=3, unet_n_filter_base=32, unet_pool=[2, 2], unet_prefix='', use_gpu=False)
The input image is normalized beforehand by supplying a normalizer
to the prediction function. We pass the recommended StarDist normalization method from csbdeep.utils
into our callable.
Calling model.predict_instances
will:
predict object probabilities and star-convex polygon distances.
perform non-maximum suppression (with overlap threshold
nms_thresh
) for polygons above object probability thresholdprob_thresh
.render all remaining polygon instances in a label image.
return the label instances image and also the details (coordinates, etc.) of all remaining polygons.
For our purpose, we will only return the respective labels. Check the detailed example StarDist notebook for more information.
def stardist_2D_versatile_fluo(img, nms_thresh=None, prob_thresh=None):
# Make sure to normalize the input image beforehand or supply a normalizer to the prediction function.
# this is the default normalizer noted in StarDist examples.
img = normalize(img, 1, 99.8, axis=(0, 1))
model = StarDist2D.from_pretrained("2D_versatile_fluo")
labels, _ = model.predict_instances(
img, nms_thresh=nms_thresh, prob_thresh=prob_thresh
)
return labels
sq.im.segment(
img=crop,
layer="image",
channel=0,
method=stardist_2D_versatile_fluo,
layer_added="segmented_stardist",
nms_thresh=None,
prob_thresh=None,
)
Found model '2D_versatile_fluo' for 'StarDist2D'.
Loading network weights from 'weights_best.h5'.
Loading thresholds from 'thresholds.json'.
Using default values: prob_thresh=0.479071, nms_thresh=0.3.
# Plot the DAPI channel of the image crop and the segmentation result.
print(crop)
print(f"Number of segments in crop: {len(np.unique(crop['segmented_stardist']))}")
fig, axes = plt.subplots(1, 2)
crop.show("image", channel=0, ax=axes[0])
_ = axes[0].set_title("DAPI")
crop.show("segmented_stardist", cmap="jet", interpolation="none", ax=axes[1])
_ = axes[1].set_title("segmentation")
Cell segmentation on H&E stained tissue data
# load H&E stained tissue image and crop to a smaller segment
img = sq.datasets.visium_hne_image_crop()
crop = img.crop_corner(0, 0, size=1000)
crop.show("image")
def stardist_2D_versatile_he(img, nms_thresh=None, prob_thresh=None):
# axis_norm = (0,1) # normalize channels independently
axis_norm = (0, 1, 2) # normalize channels jointly
# Make sure to normalize the input image beforehand or supply a normalizer to the prediction function.
# this is the default normalizer noted in StarDist examples.
img = normalize(img, 1, 99.8, axis=axis_norm)
model = StarDist2D.from_pretrained("2D_versatile_he")
labels, _ = model.predict_instances(
img, nms_thresh=nms_thresh, prob_thresh=prob_thresh
)
return labels
StarDist H&E segmentation method works on three input channels as n_channel_in = 3
. We therefore pass channel = None
to the sq.img.segment
method which will then run the given segmentation method on all given channels.
StarDist2D.from_pretrained("2D_versatile_he")
Found model '2D_versatile_he' for 'StarDist2D'.
Loading network weights from 'weights_best.h5'.
Loading thresholds from 'thresholds.json'.
Using default values: prob_thresh=0.692478, nms_thresh=0.3.
StarDist2D(2D_versatile_he): YXC → YXC
├─ Directory: None
└─ Config2D(axes='YXC', backbone='unet', grid=(2, 2), n_channel_in=3, n_channel_out=33, n_dim=2, n_rays=32, net_conv_after_unet=128, net_input_shape=[None, None, 3], net_mask_shape=[None, None, 1], train_background_reg=0.0001, train_batch_size=8, train_checkpoint='weights_best.h5', train_checkpoint_epoch='weights_now.h5', train_checkpoint_last='weights_last.h5', train_completion_crop=32, train_dist_loss='mae', train_epochs=200, train_foreground_only=0.9, train_learning_rate=0.0003, train_loss_weights=[1, 0.1], train_n_val_patches=3, train_patch_size=[512, 512], train_reduce_lr={'factor': 0.5, 'patience': 50, 'min_delta': 0}, train_shape_completion=False, train_steps_per_epoch=200, train_tensorboard=True, unet_activation='relu', unet_batch_norm=False, unet_dropout=0.0, unet_kernel_size=[3, 3], unet_last_activation='relu', unet_n_conv_per_depth=2, unet_n_depth=3, unet_n_filter_base=32, unet_pool=[2, 2], unet_prefix='', use_gpu=False)
sq.im.segment(
img=crop,
layer="image",
channel=None,
method=stardist_2D_versatile_he,
layer_added="segmented_stardist_default",
prob_thresh=None,
nms_thresh=None,
)
Found model '2D_versatile_he' for 'StarDist2D'.
Loading network weights from 'weights_best.h5'.
Loading thresholds from 'thresholds.json'.
Using default values: prob_thresh=0.692478, nms_thresh=0.3.
print(crop)
print(
f"Number of segments in crop: {len(np.unique(crop['segmented_stardist_default']))}"
)

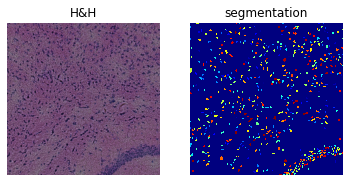

fig, axes = plt.subplots(1, 2)
crop.show("image", ax=axes[0])
_ = axes[0].set_title("H&H")
crop.show("segmented_stardist_default", cmap="jet", interpolation="none", ax=axes[1])
_ = axes[1].set_title("segmentation")
Adjusting the prob_thresh
parameter will enhance the segmentation. We show this additionally for prob_thresh = 0.3
. Please be aware that the print statement of the default values will remain unchanged, even if you adjusted the parameters.
sq.im.segment(
img=crop,
layer="image",
channel=None,
method=stardist_2D_versatile_he,
layer_added="segmented_stardist",
prob_thresh=0.3,
nms_thresh=None,
)
Found model '2D_versatile_he' for 'StarDist2D'.
Loading network weights from 'weights_best.h5'.
Loading thresholds from 'thresholds.json'.
Using default values: prob_thresh=0.692478, nms_thresh=0.3.
print(crop)
print(f"Number of segments in crop: {len(np.unique(crop['segmented_stardist']))}")
fig, axes = plt.subplots(1, 2)
crop.show("image", ax=axes[0])
_ = axes[0].set_title("H&H")
crop.show("segmented_stardist", cmap="jet", interpolation="none", ax=axes[1])
_ = axes[1].set_title("segmentation")
